TBA800 5 W amplifier (CB19157E)

Details
Written by: Newton C. Braga

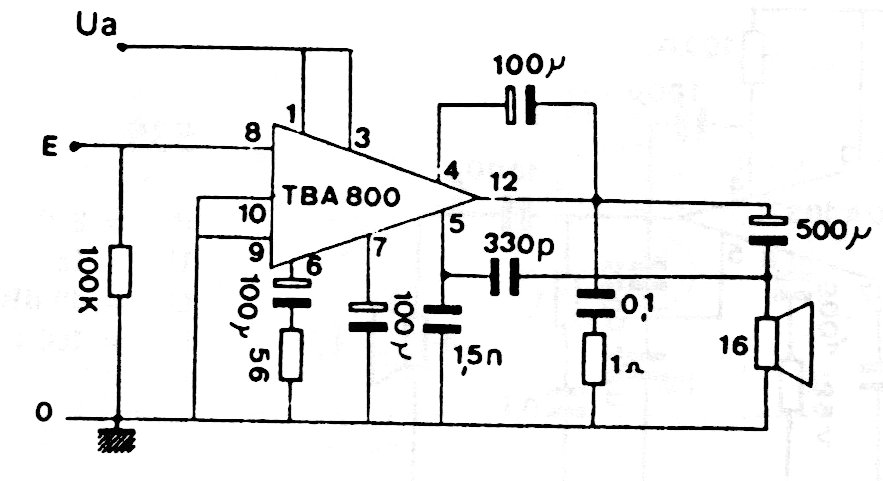

The integrated circuit used in this' 90s amplifier is not very common today. The supply is 24 V, the gain is 50dB and the input resistance is 100 k. The circuit is from an old circuit manual.




| Clique na imagem para ampliar |
