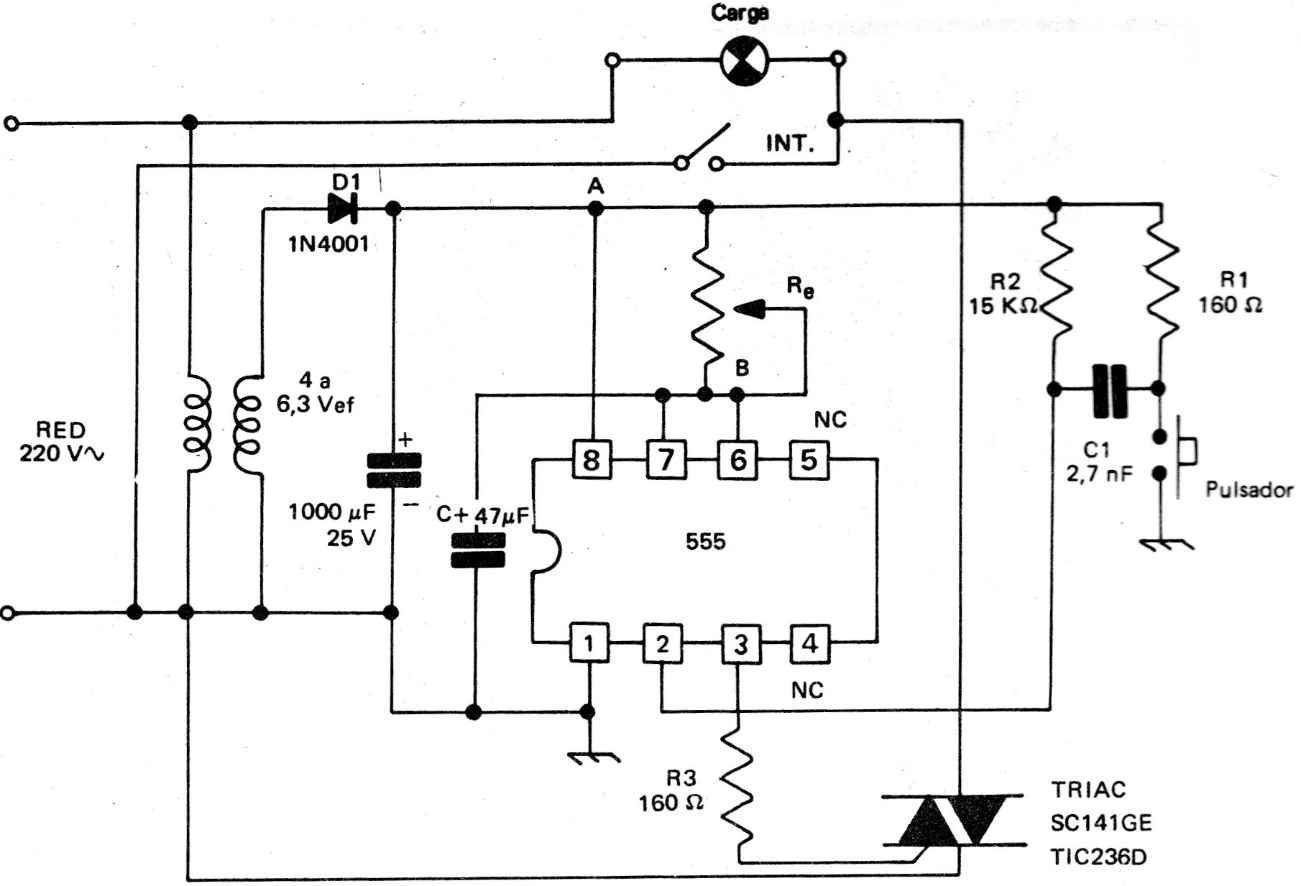

This circuit was found in an old European documentation from the 70's. The circuit directly drives high-power loads connected to the power grid using a Triac that can be of a modern equivalent type. The adjustment pot is 1 M and must have a 10k resistor in series, which was not foreseen in the original design.
