AM PLL tuner (CB20236E)

Details
Written by: Newton C. Braga

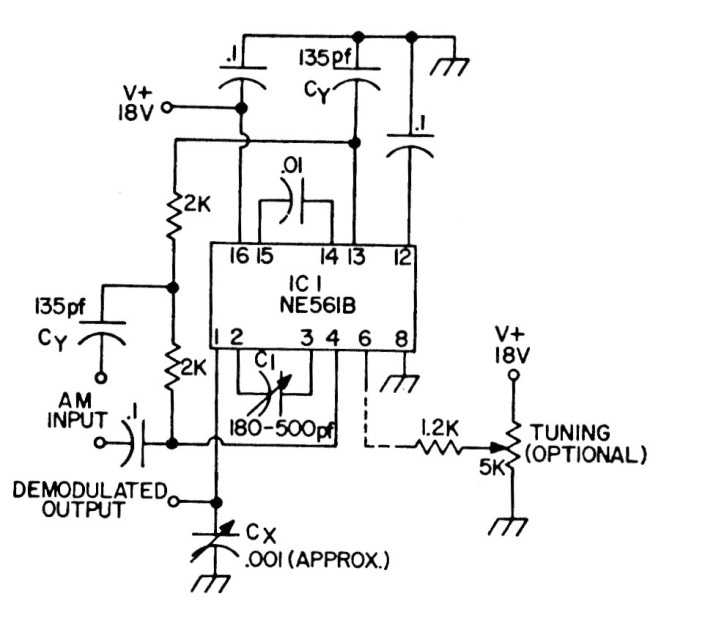

With this circuit it is possible to tune an AM signal using a 5k potentiometer (4k7). The circuit was found in a publication from the 1980s and the PLL can be replaced by an equivalent one, with tests.




| Clique na imagem para ampliar |
