MW trap for short wave receiver (CB20935E)

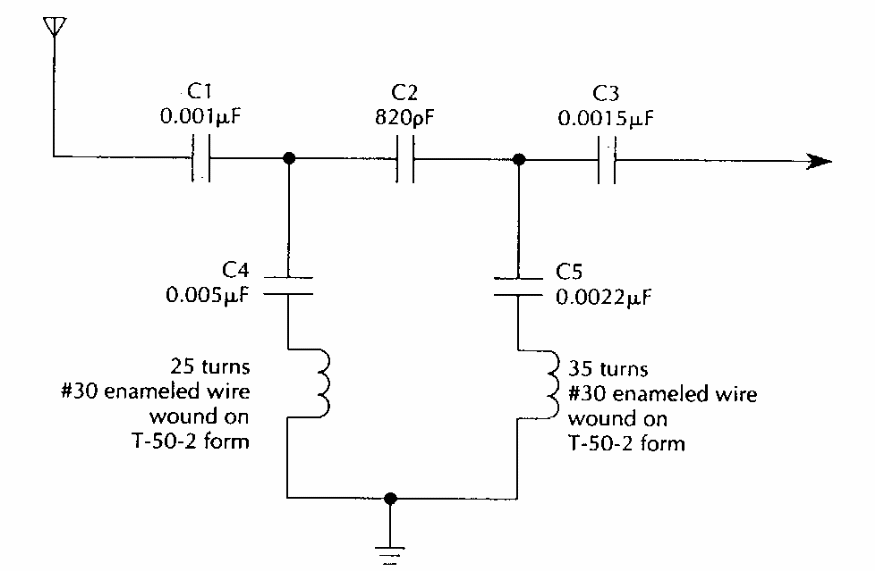

Found in American documentation from the 1980s, this circuit rejects strong MW stations that may be interfering with a shortwave receiver.
