Direct Coupling Stage (CB20050E)

Details
Written by: Newton C. Braga

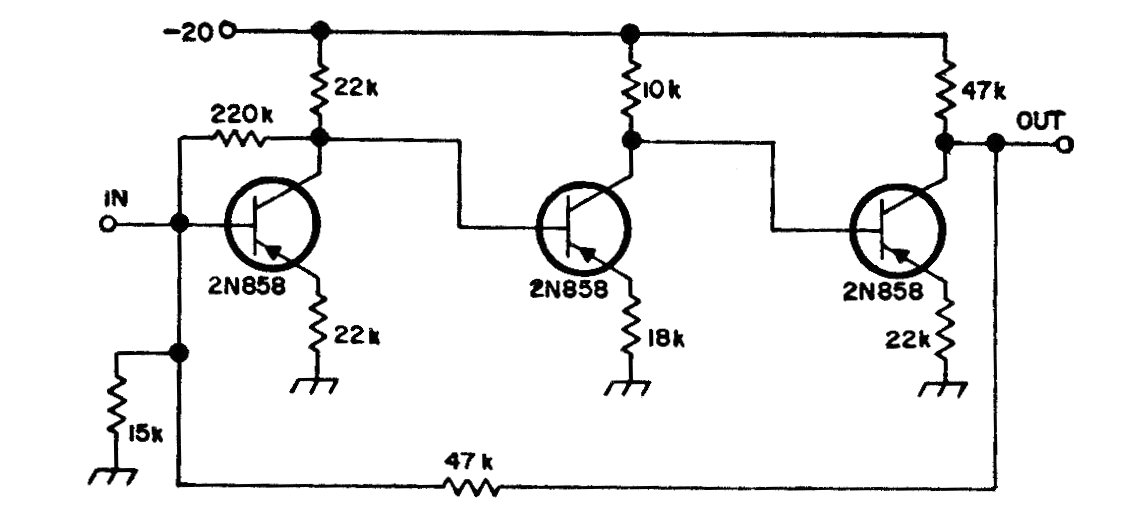

This circuit was found in a 1975 documentation. Current general-purpose transistors can be used, and the power is supplied with relatively high voltage. The gain is 30 dB.






| Clique na imagem para ampliar |
