Narrowband Audio Filter (CB20085E)

Details
Written by: Newton C. Braga

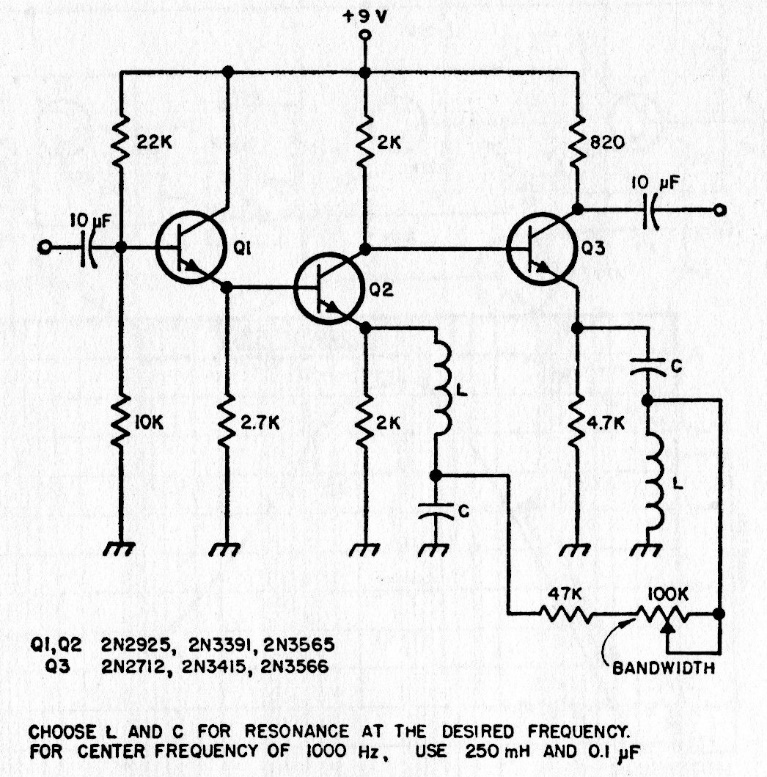

We found this circuit in an old American publication from the 1980s. Transistors can be general-purpose types like the BC548, and the tuning frequency is given by the L and C components.
