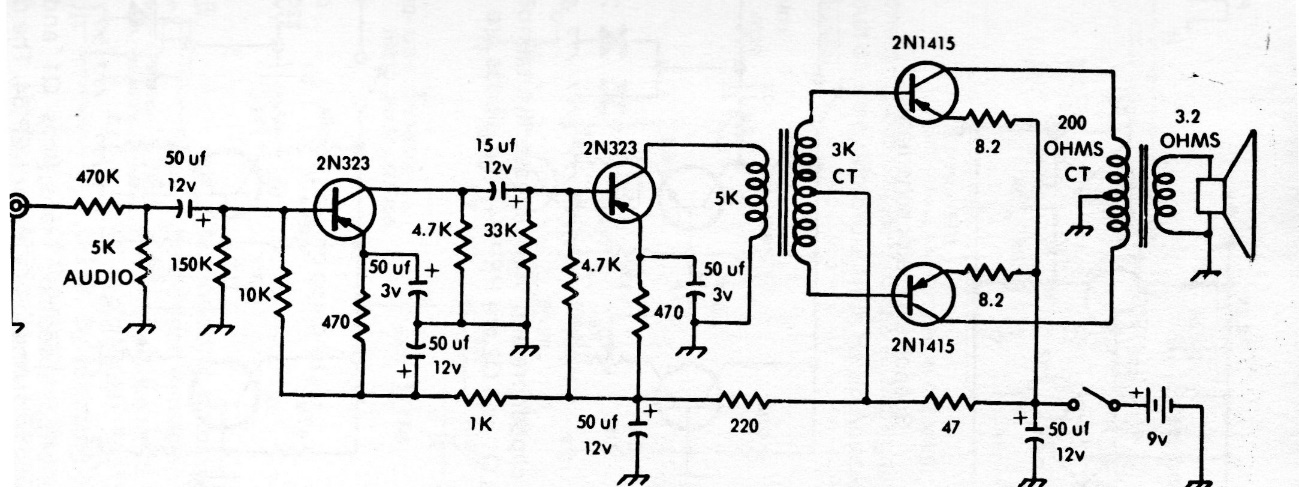

This circuit of a few watts of power shows a typical configuration from the 70s using driver and output transformers. Output transistors must use a heatsink.
| Clique na imagem para ampliar |
Transistor Push Pull Power Amplifier (CB20005E)
- Details
- Written by: Newton C. Braga
