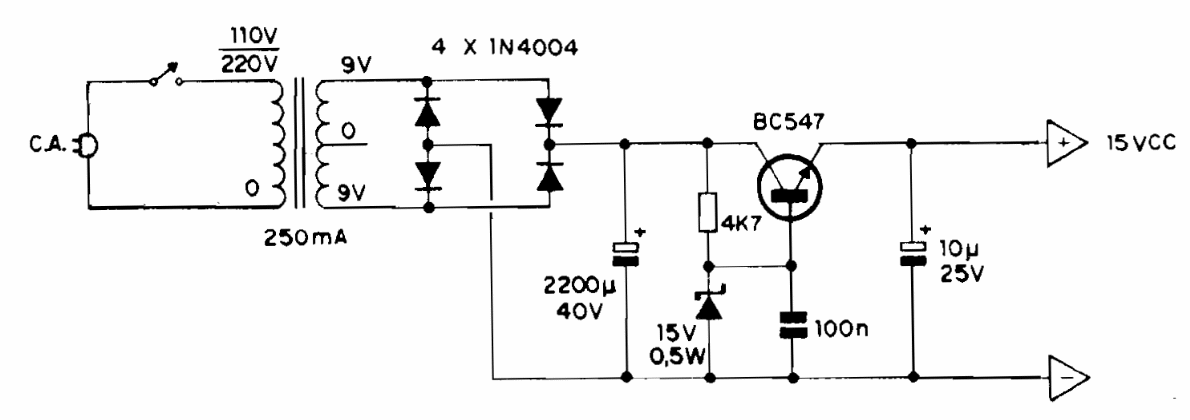

This small source for low consumption projects was found in an old national documentation. The transistor is for general use and the transformer has 50 to 100 mA of secondary current.
| Clique na imagem para ampliar |
15 V x 100 mA Power Supply (CB20309E)
