1800 Hz Decoder (CB20352E)

Details
Written by: Newton C. Braga

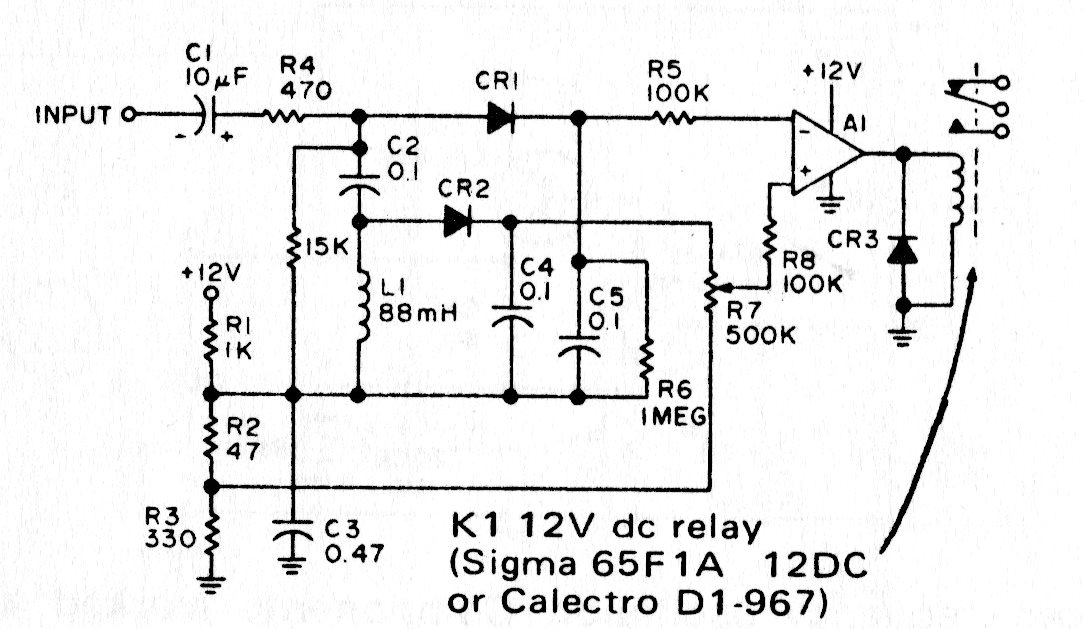

This circuit decodes a 1800 Hz tone used in communications. The circuit is from an American documentation for radio amateurs of the 80's. Equivalent component can be used.






| Clique na imagem para ampliar |
