High Current Transistor Regulator (CB20291E)

Details
Written by: Newton C. Braga

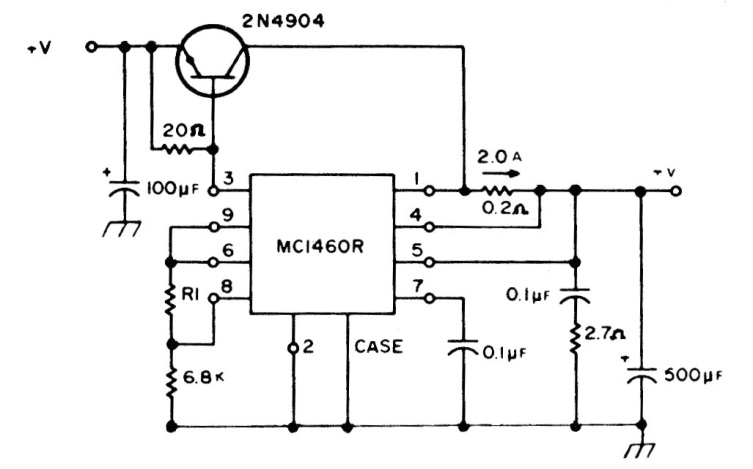

This circuit is from a Motorola integrated circuit manual. The integrated used is no longer common in our market and the power transistor must be equipped with a heat sink.




| Clique na imagem para ampliar |
