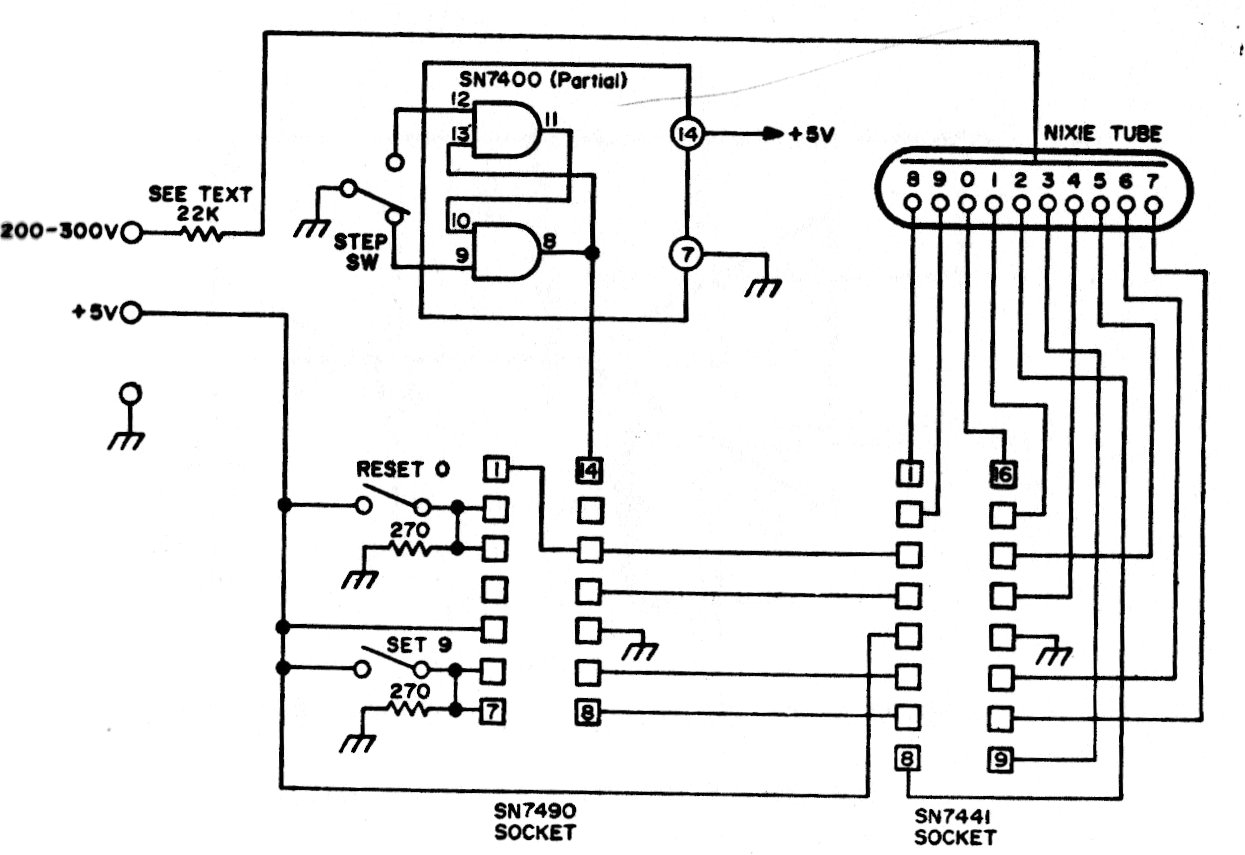

This is an old test circuit for integrated TTL counters, feeding a Nixie tube, common at the time. The circuit is from the 90's, not being given the power supply.
| Clique na imagem para ampliar |
Decade Counter with Nixie Tube (CB20141E)
- Details
- Written by: Newton C. Braga
