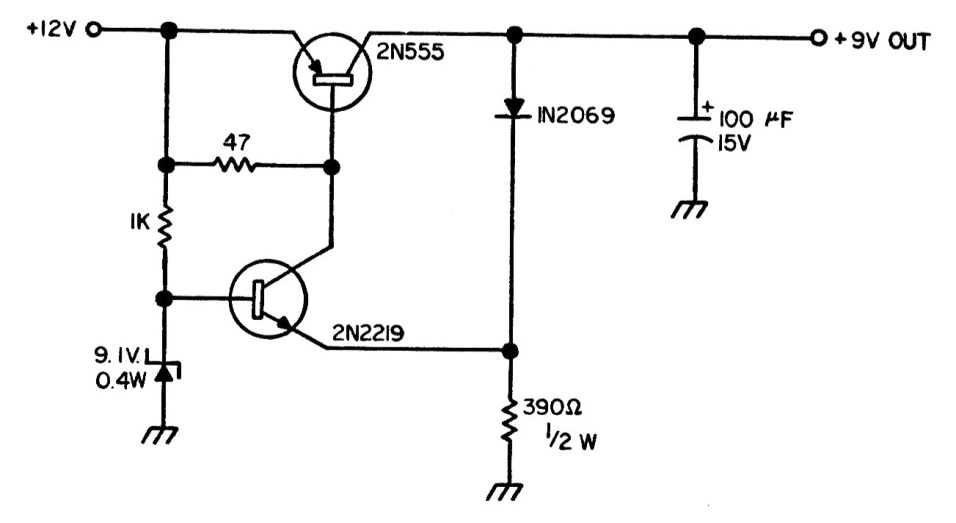

This regulator can use BD'136 as the main transistor and as a reference next to a BC548 zener. The circuit provides a voltage of 9V from 12 to power devices that use batteries.
| Clique na imagem para ampliar |
9 V Transistor Regulator (CB20289E)
- Details
- Written by: Newton C. Braga
