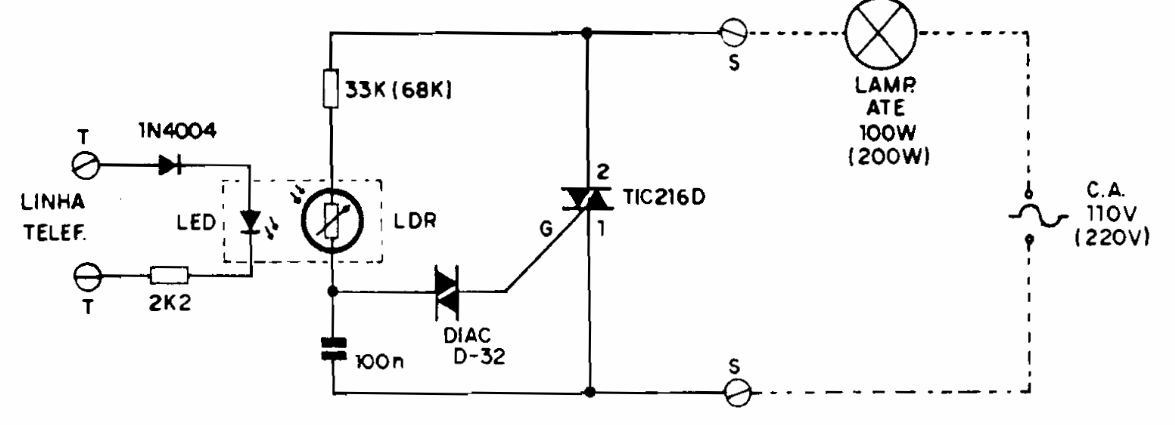

When the phone rings, a high-powered incandescent light comes on. This circuit can be interesting to obtain the remote call warning or to assist the hearing impaired.
