Sampling and Holding LM110 (CB20156E)

Details
Written by: Newton C. Braga

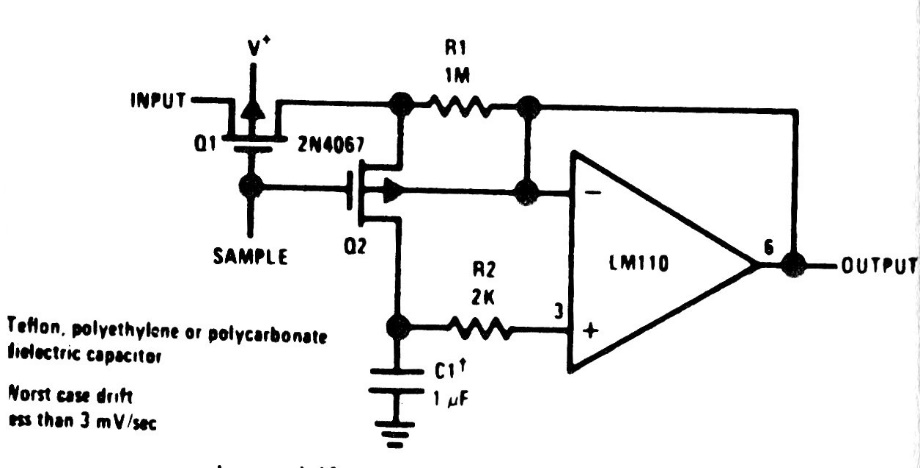

This is another sampling and holding circuit found in a factory manual from the 1980s. The circuit can be implemented with more modern components. The FET is not a common component today.
