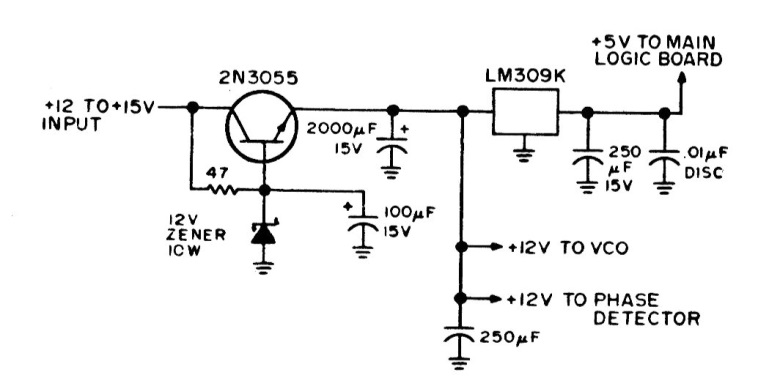

This circuit shows how to add a 1st regulator to a source that already has a step for this purpose. The circuit was found in an American power supply documentation.
| Clique na imagem para ampliar |
Additional power supply regulator (CB20288E)
- Details
- Written by: Newton C. Braga
