Alternator AC Adjustment (CB20078E)

Details
Written by: Newton C. Braga

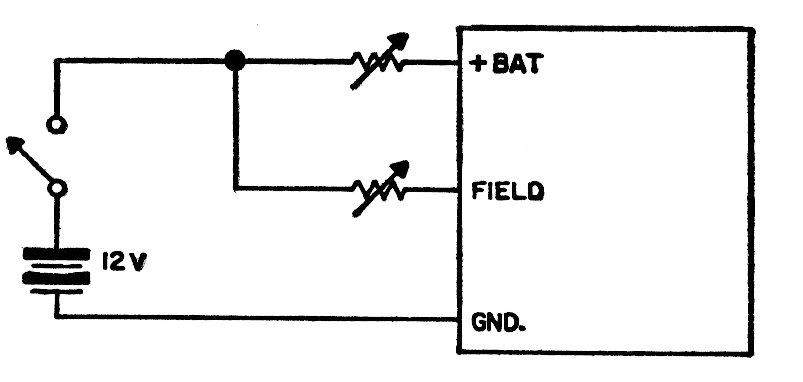

When an alternator is used to supply constant current, it needs an adjustment that must be made as shown in the figure. The potentiometers are of low wire value with high dissipation.




| Clique na imagem para ampliar |
