Amplifier MC14546 (CB20041E)

Details
Written by: Newton C. Braga

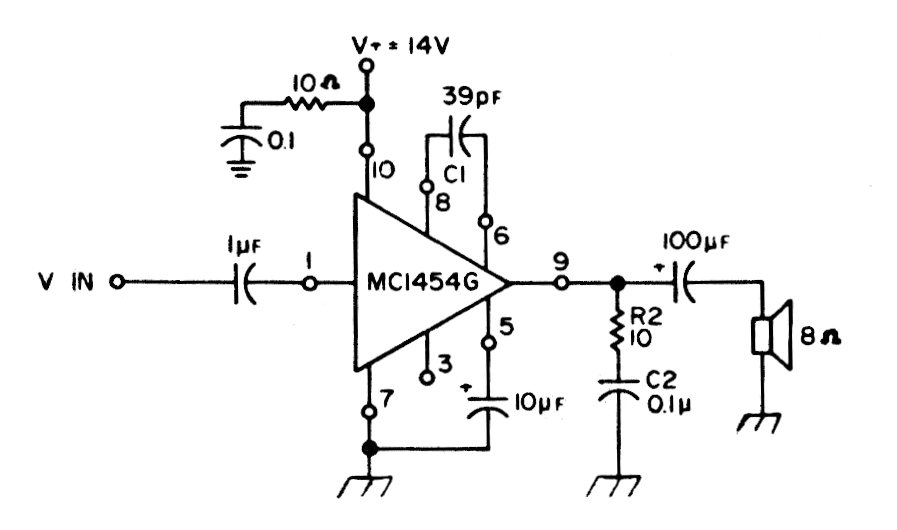

This small 1 W amplifier uses a Motorola integrated circuit from the 1970s. The integrated circuit used is uncommon today and the power supply does not have to be symmetrical.




| Clique na imagem para ampliar |
