a Emergency Light (CB20326E)

Details
Written by: Newton C. Braga

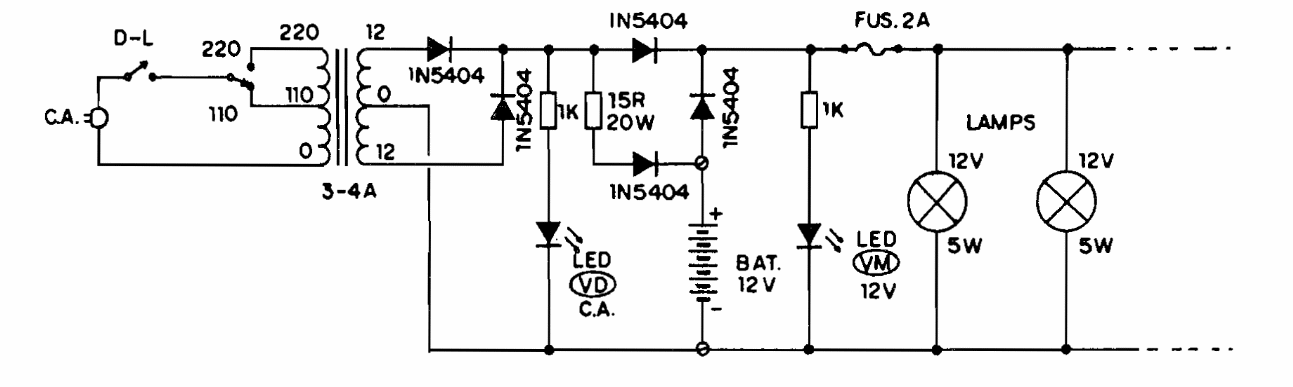

Found in old documentation as permanent security lighting, this circuit uses common components. The lamps can be replaced by fluorescent inverters or LEDs with appropriate series resistors.






| Clique na imagem para ampliar |
