5 V Power Supply (CB20285E)

Details
Written by: Newton C. Braga

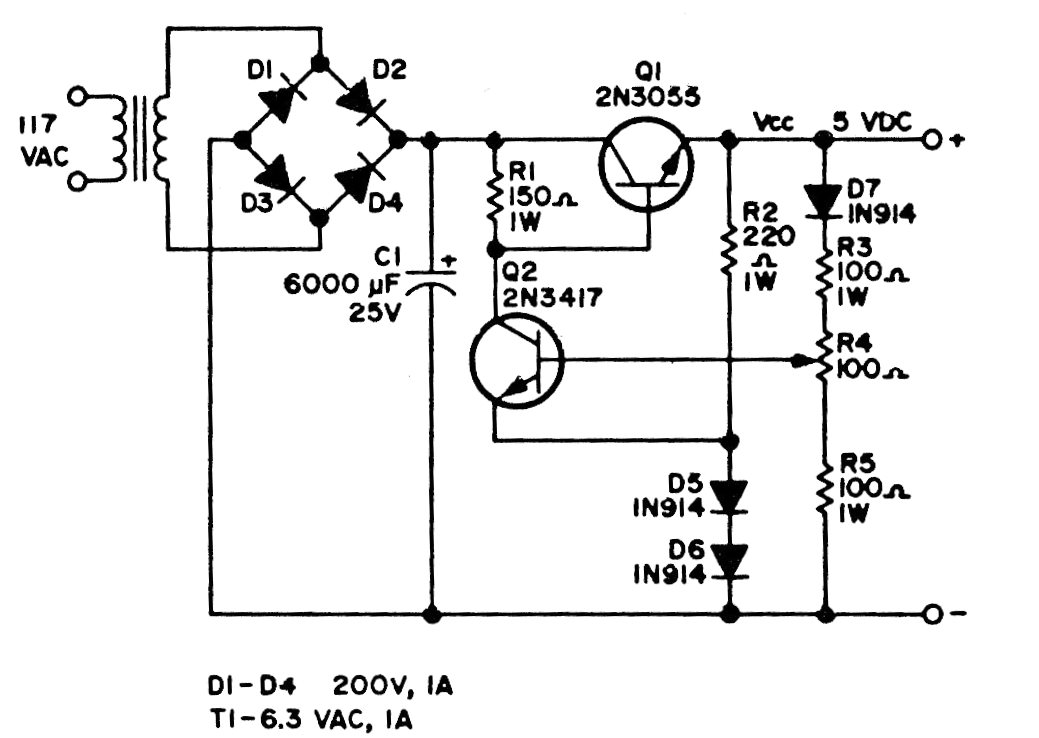

This 5 V power supply for TTL, Shields and microcontrollers is old, and the components can be replaced by modern equivalents. Transistor Q1 can be a TIP31 and Q2 can be a BD135.




| Clique na imagem para ampliar |
