Frequency Standard (CB20100E)

Details
Written by: Newton C. Braga

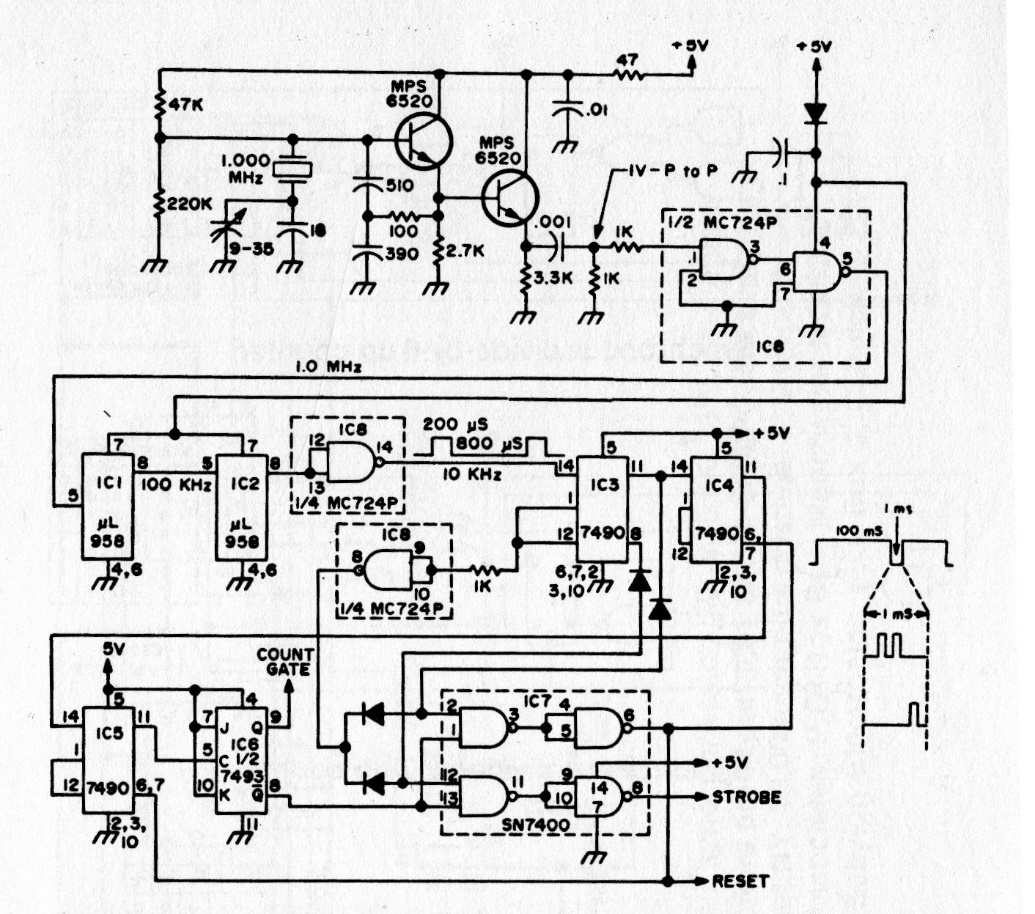

This circuit was obtained in an American documentation from the 90's. The circuit can be implemented with some equivalent components, such as transistors and TTL logic circuits.




| Clique na imagem para ampliar |
