High Speed Comparator 741 (CB20135E)

Details
Written by: Newton C. Braga

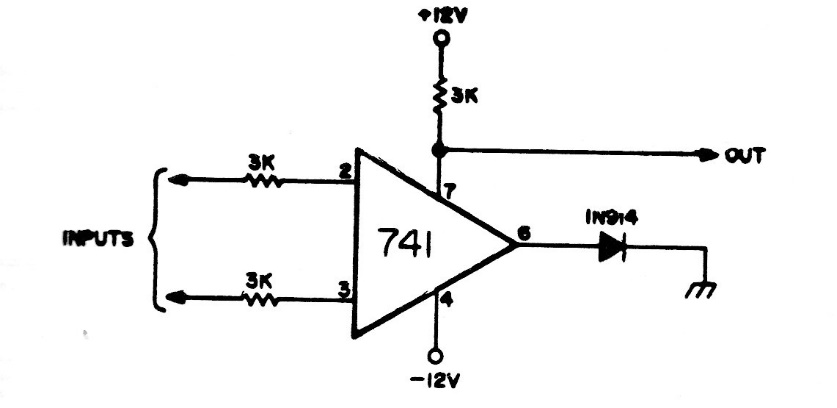

This 1980s documentation circuit uses a 741 in a different high-speed comparator configuration. The feed must be symmetrical. The diode is general-purpose.
