Ultrasonic repellent (CB20814E)

Details
Written by: Newton C. Braga

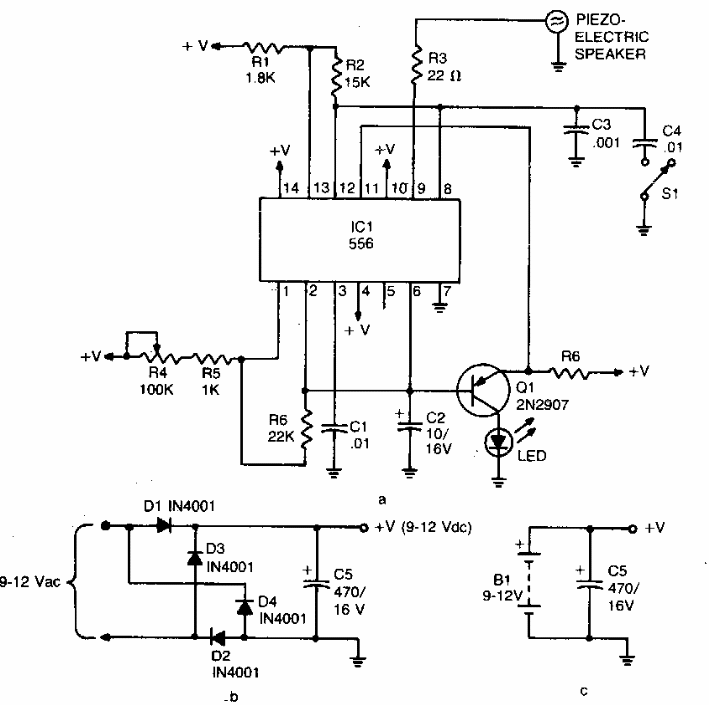

This sophisticated repellent uses a double 555. We find it in an American documentation from the 80's. The circuit can be powered by batteries or source included in the diagram.




| Clique na imagem para ampliar |
