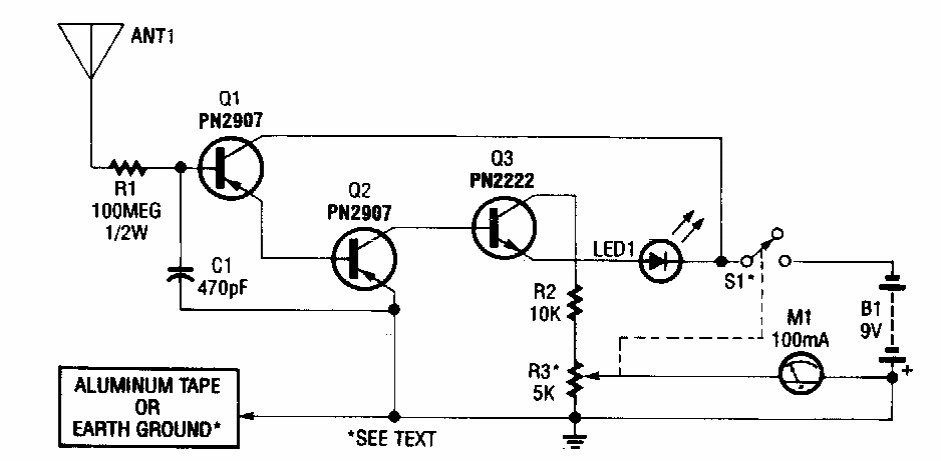

Ion detector (CB21003E)

Details
Written by: Newton C. Braga



This sensitive circuit was found in an Electronics Hobbyists Handbook from the 1990s. The circuit can use common general-purpose transistors in place of the original ones.




| Clique na imagem para ampliar |
