50 W Amplifier (CB6180E)

Details
Written by: Newton C. Braga

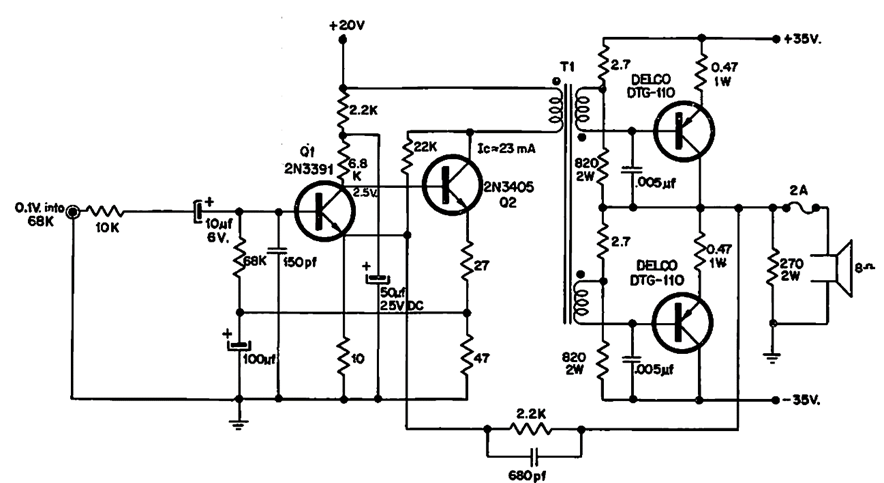

     Found in a 1967 Delco documentation, this circuit can deliver power from 40 to 50 W at 8-ohm load. The response ranges from 20 to 20 000 Hz. No information is given about the transformer used.
