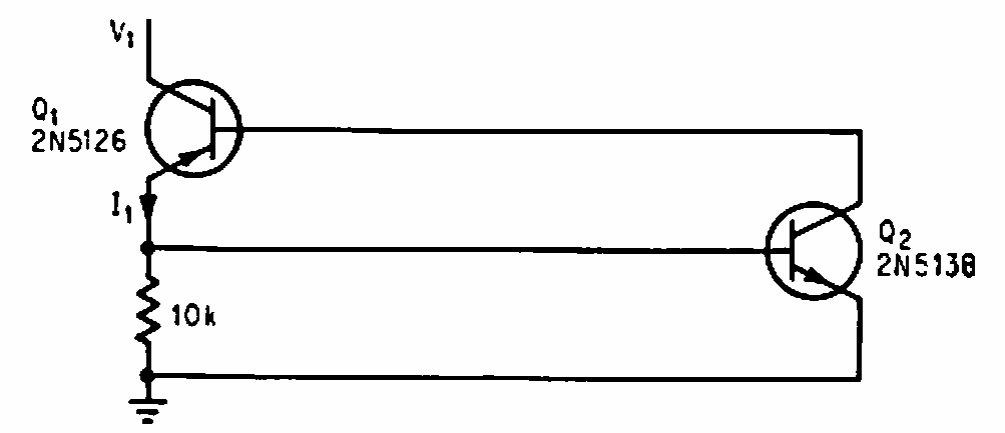

This two-transistor regenerative switch works as an excellent trigger for SCRs and other devices that need sharp pulses. The circuit is from an old documentation.
| Clique na imagem para ampliar |
Efficient trigger (CB21470E)
- Details
- Written by: Newton C. Braga
