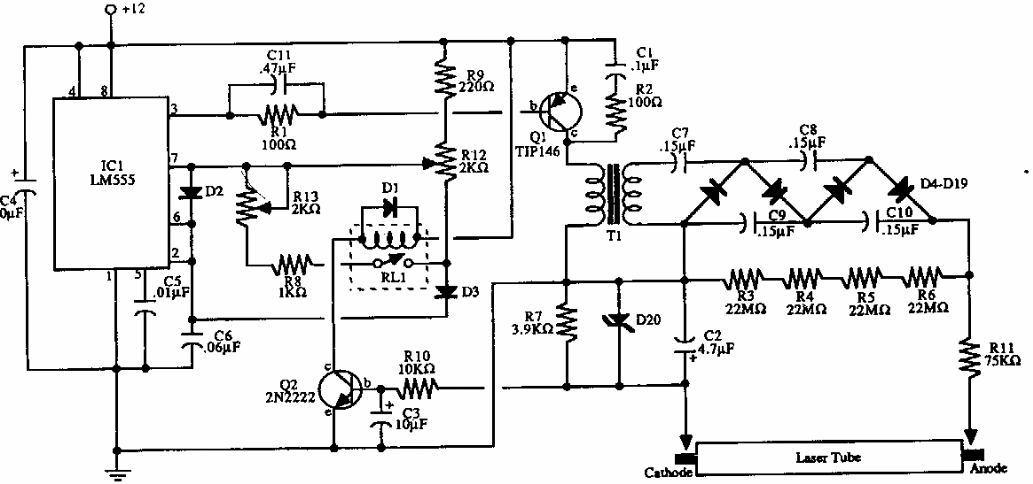

Modulated HeNe laser power supply (CB21186E)

This high voltage gas laser source was found in an American publication from the 1990s. The circuit has an input for PWM modulation.
