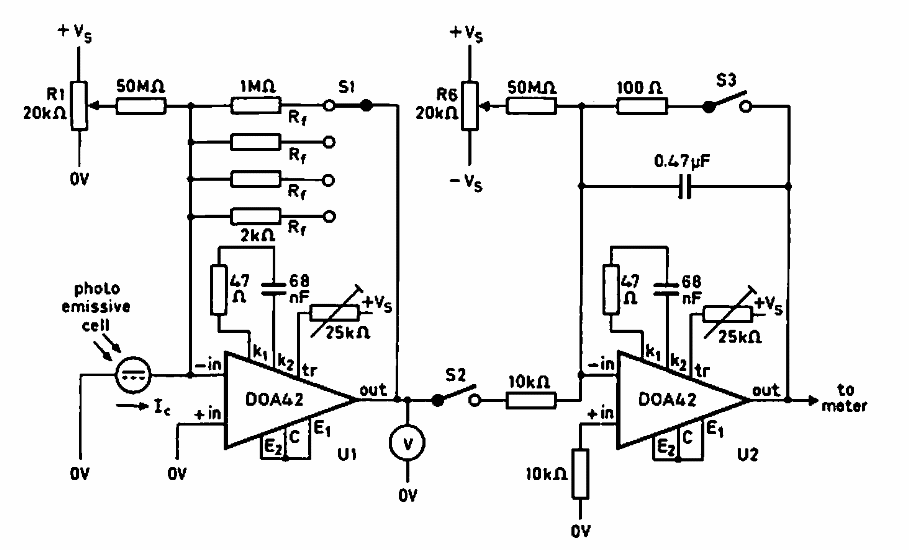

Light intensity meter (CB7340E)

Details
Written by: Newton C. Braga



     This circuit was found in a Philips documentation from 1970. The components are of the time, difficult to find today, but the configuration can be adapted to use modern equivalent components.




| Clique na imagem para ampliar |
