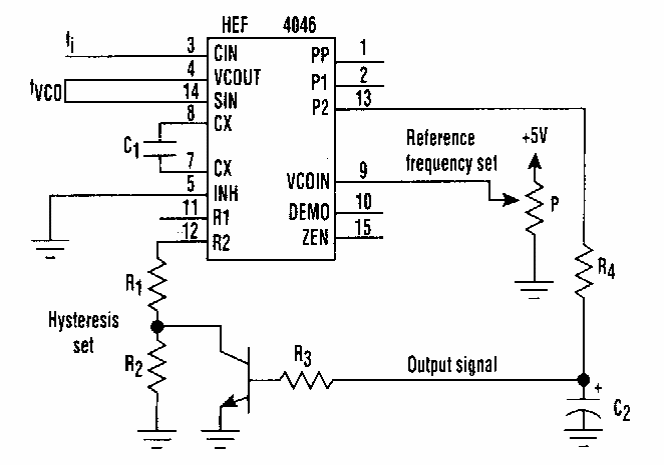

VCO and Frequency Comparator (CB21051E)

Found in an Electronic Design from the 90s, this circuit makes use of a PLL CMOS. Values for various components are not indicated.

| Clique na imagem para ampliar |
