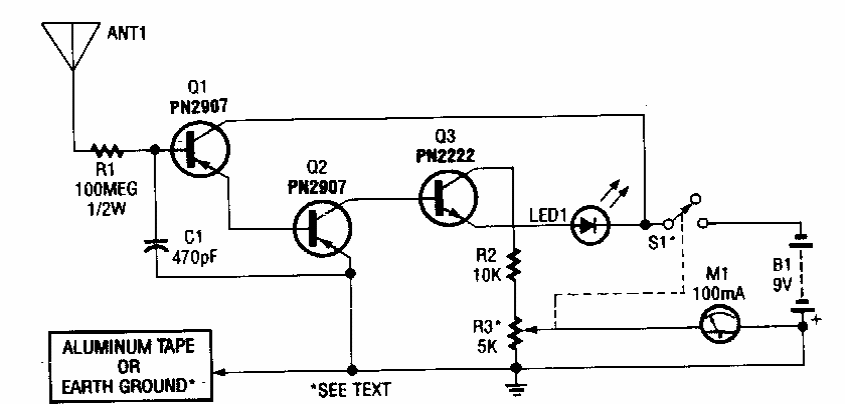

This circuit was found in a Popular Electronics from the 90's. Its purpose is to detect the ionization of the air. The meter can be replaced by the current scale of an ordinary multimeter.
| Clique na imagem para ampliar |
Ion detector (CB21203E)
- Details
- Written by: Newton C. Braga
