Audible metronome (CB21061E)

Details
Written by: Newton C. Braga

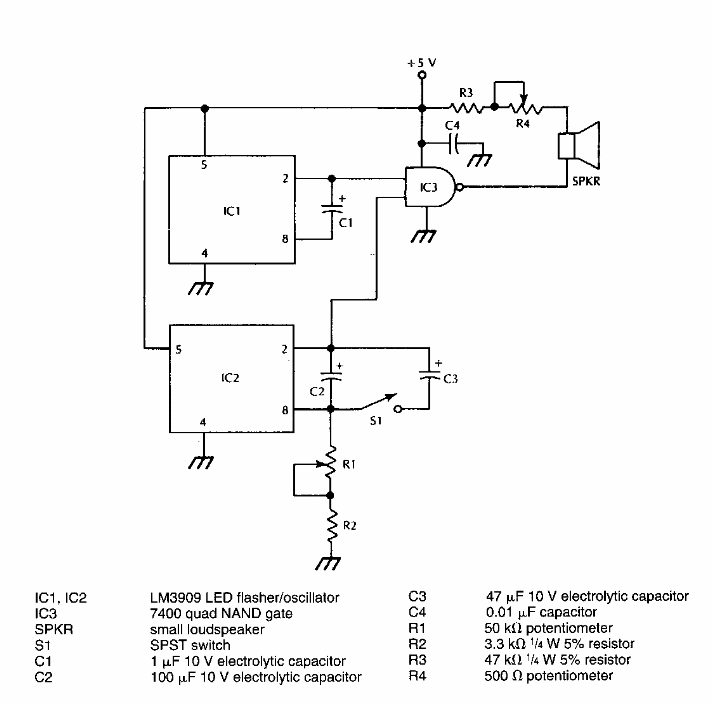

We found this circuit in an American documentation from the 1990s. The circuit is based on the LM3909, a low power oscillator from National Semiconductor.




| Clique na imagem para ampliar |
