100W Inverter (CB21487E)

Details
Written by: Newton C. Braga

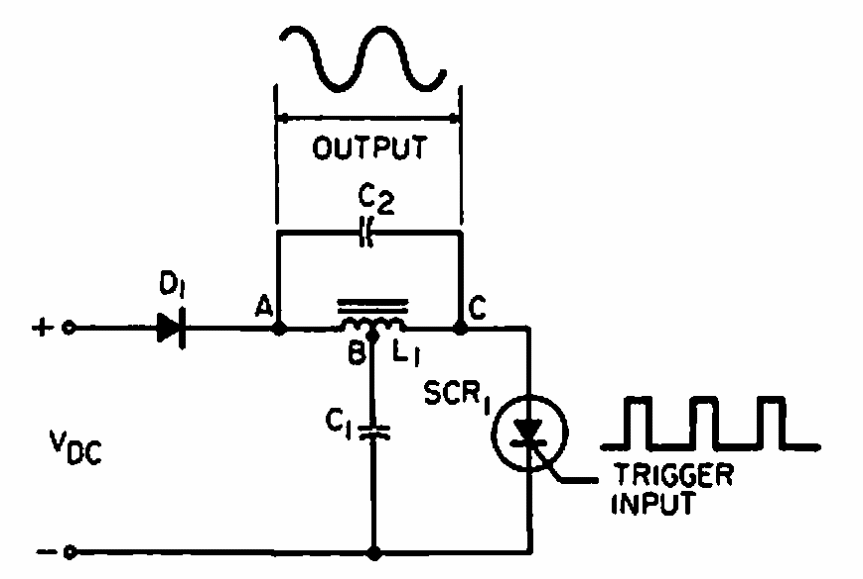

This SCR circuit can operate on frequencies from 1 to 20 kHz. We found it in an American documentation from the 60's. The SCR must be according to the load. No information is given about the transformer.
