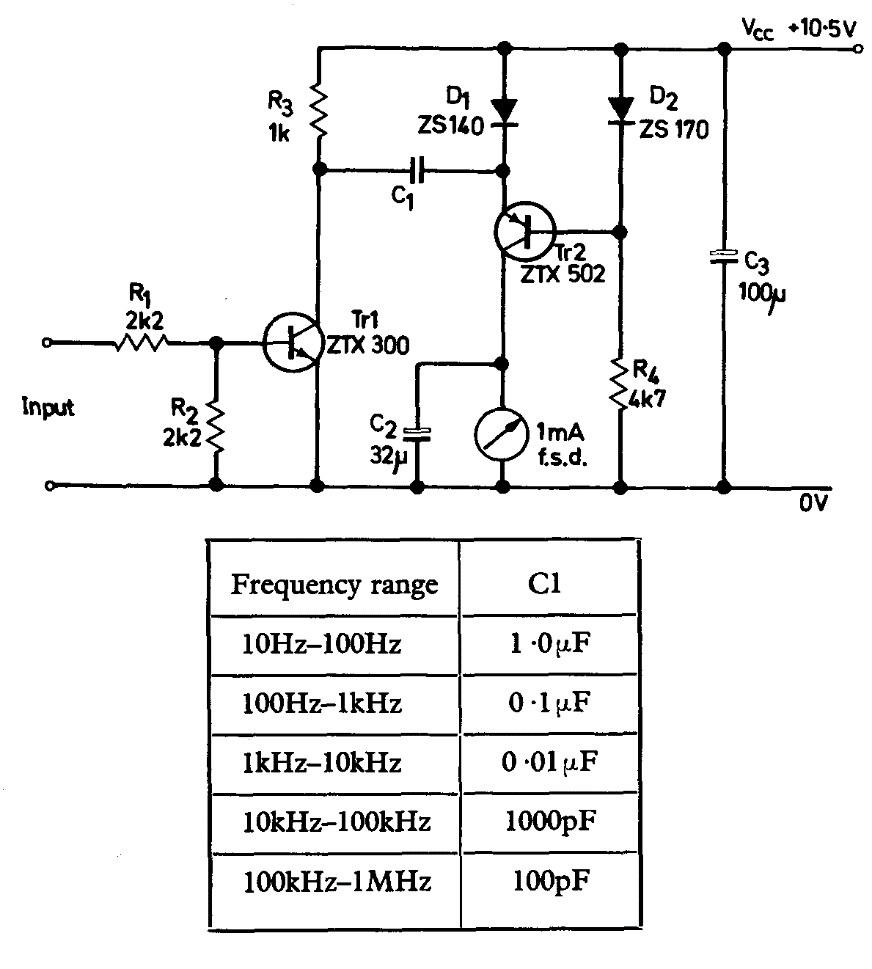

We found this circuit in Ferranti's 1974 transistor manual. The components are from the period. The table gives the value of C1 for different frequency ranges.
| Clique na imagem para ampliar |
Analog Frequency Counter (CB21848E)
- Details
- Written by: Newton C. Braga
