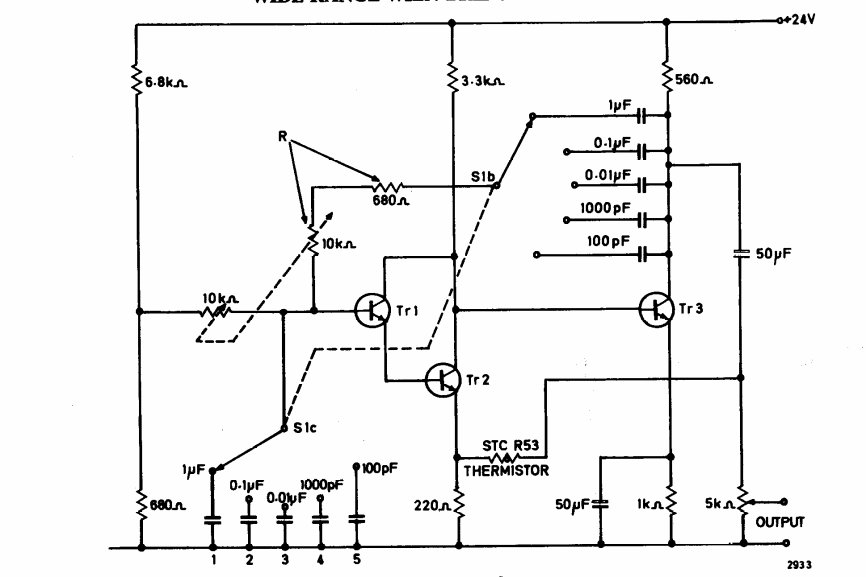

This Vienna bridge multi-band oscillator circuit was found in a 1974 Ferranti transistor manual. The circuit generates signals from 25 Hz to 1 MHz in 5 bands selected by the capacitors.
| Clique na imagem para ampliar |
Wien bridge oscillator (CB21864E)
- Details
- Written by: Newton C. Braga
