High Side Sensor with Timer (CB21599E)

Details
Written by: Newton C. Braga

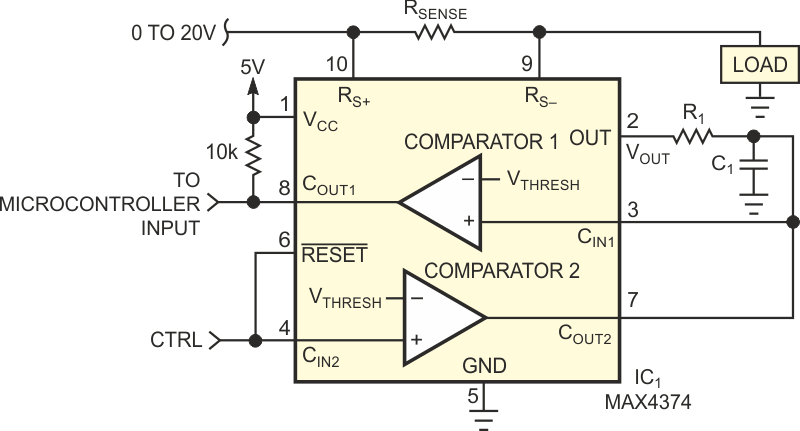

This circuit was based on Maxim's MAX4374. The circuit senses the current in a 0 to 20 V line and has a timed output signal, with time given by R1 and C1. Power is supplied with 5V.




| Clique na imagem para ampliar |
