Neon temperature control (CB21389E)

Details
Written by: Newton C. Braga

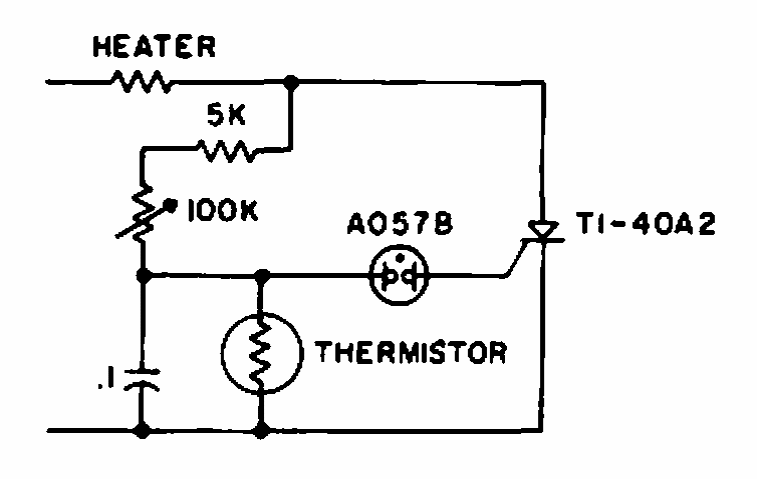

This thermostat circuit triggered by a neon lamp and having a thermistor as a sensor was found in an old American documentation. SCR is according to load.




| Clique na imagem para ampliar |
