NOR Crossed Gates (CB21500E)

Details
Written by: Newton C. Braga

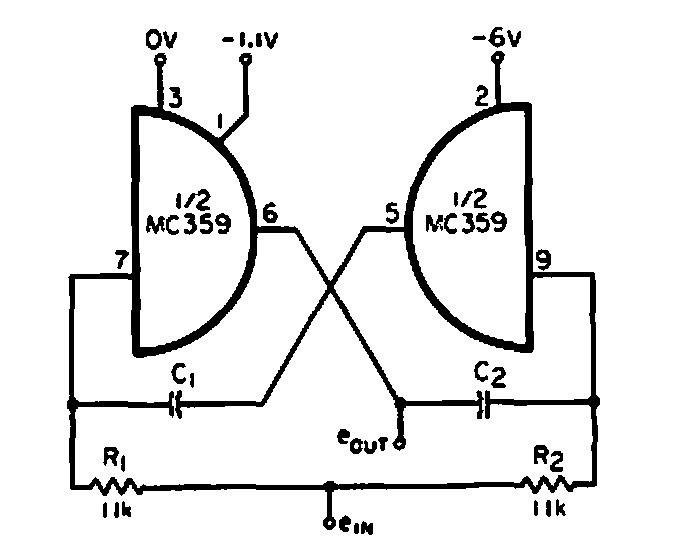

This circuit from a 1967 documentation generates 2.5 Hz signals depending on the capacitors used, in this case 160 uF. For 4 6700 pF the signal will be 20 kHz.




| Clique na imagem para ampliar |
