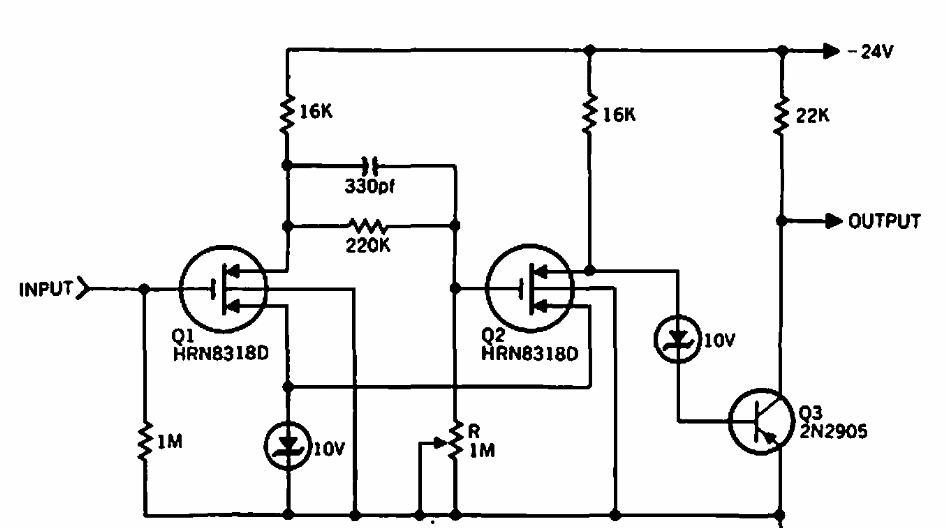

MOSFET trigger (CB21455E)

This Schimitt trigger with MOS transistors was found in an old American documentation. Modern equivalent semiconductors can be tested.

| Clique na imagem para ampliar |
