Absolute Value Comparator (CB21598E)

Details
Written by: Newton C. Braga



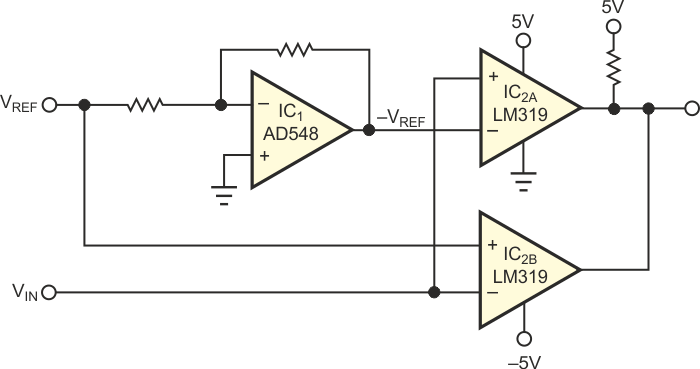

Based on common operational amplifiers, this circuit was found in Texas Instruments documentation. The power supply must be symmetrical.
