ELF Monitor (CB21055E)

Details
Written by: Newton C. Braga

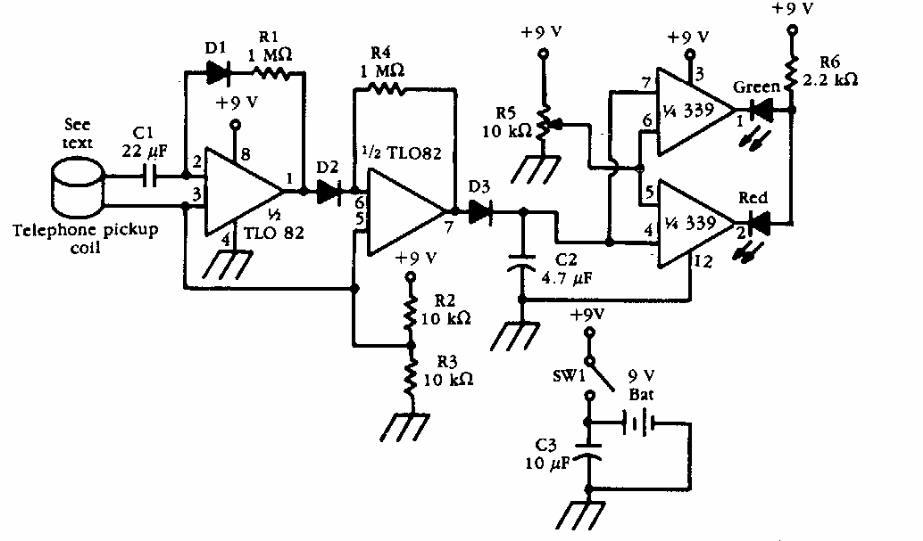

This circuit monitors extra-low frequency (ELF) fields. We found it in an American documentation from the 90s.




| Clique na imagem para ampliar |
