Submarine Microphone (CB21071E)

Details
Written by: Newton C. Braga

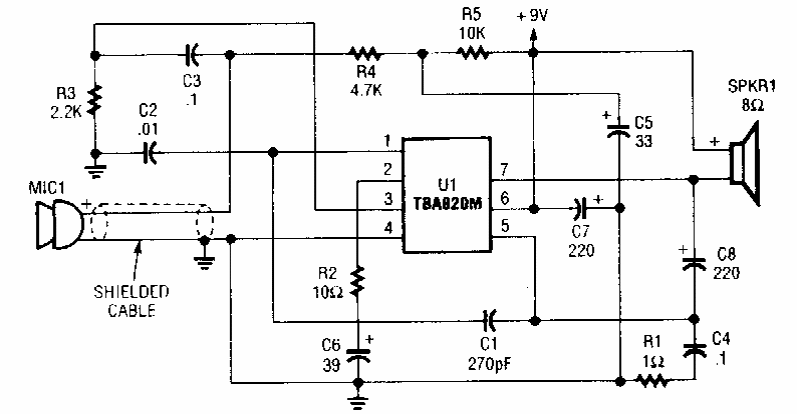

This circuit is intended for underwater communications. Of course, the critical point is the shielding to avoid water. The circuit is from an Electronic Hobbysts Handbook from the 90s.




| Clique na imagem para ampliar |
