30-second delay (CB21416E)

Details
Written by: Newton C. Braga

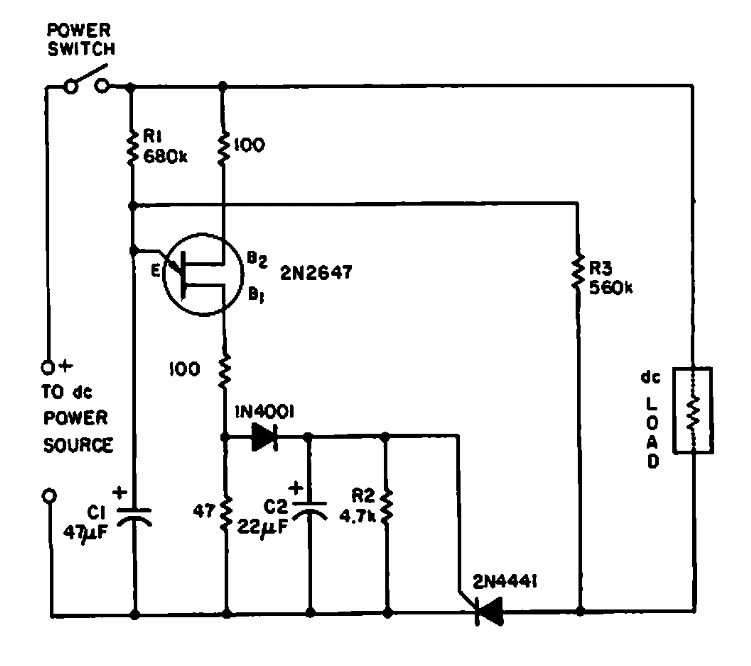

Found in 1969 documentation, this circuit supplies a load after an interval given by R1 and C1. These components can be changed to other times.
