Tuned collector oscillator (CB21149E)

Details
Written by: Newton C. Braga

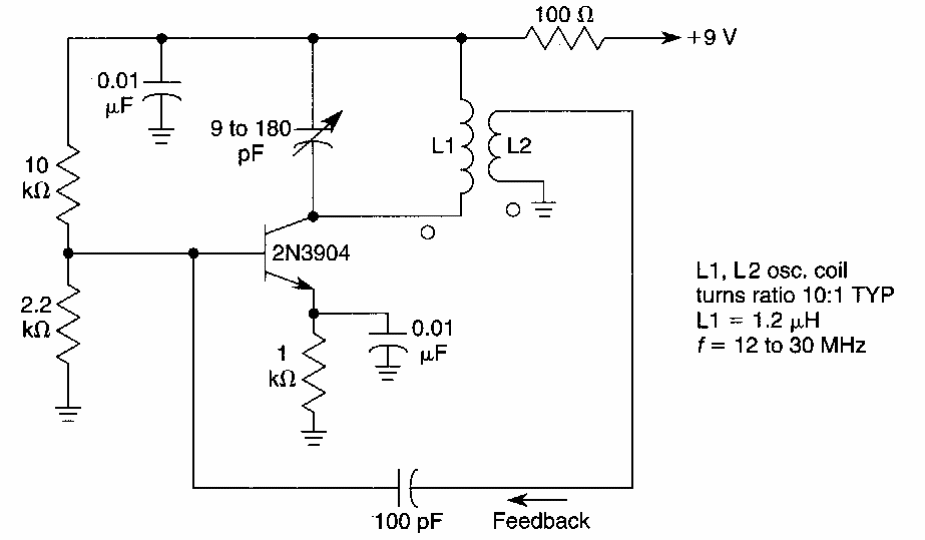

This circuit was found in an American documentation from the 90's. The transistor is a general purpose one. The circuit oscillates well between 12 and 30 MHz with the indicated components.




| Clique na imagem para ampliar |
