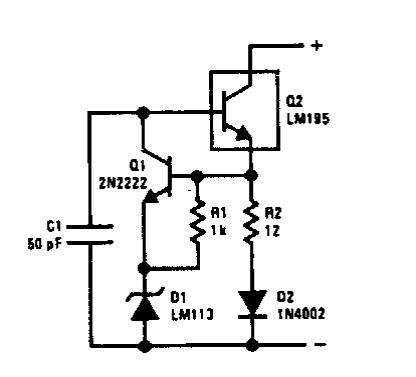

100 mA regulator (CB21168E)

Details
Written by: Newton C. Braga



This 2-terminal regulator was obtained from a 1990s National Semiconductor manual. The components admit modern equivalents.
