Spy Amplifier (CB21644E)

Details
Written by: Newton C. Braga

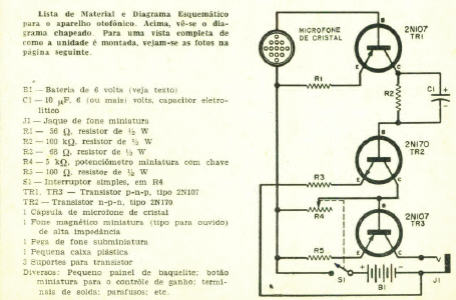

This stethoscope or hearing aid amplifier has excellent gain. It was found in Popular Electronics from December 1968. The transistors are germanium of the time, and the earpiece must be high impedance.
