Complex Sound Generator (CB21237E)

Details
Written by: Newton C. Braga

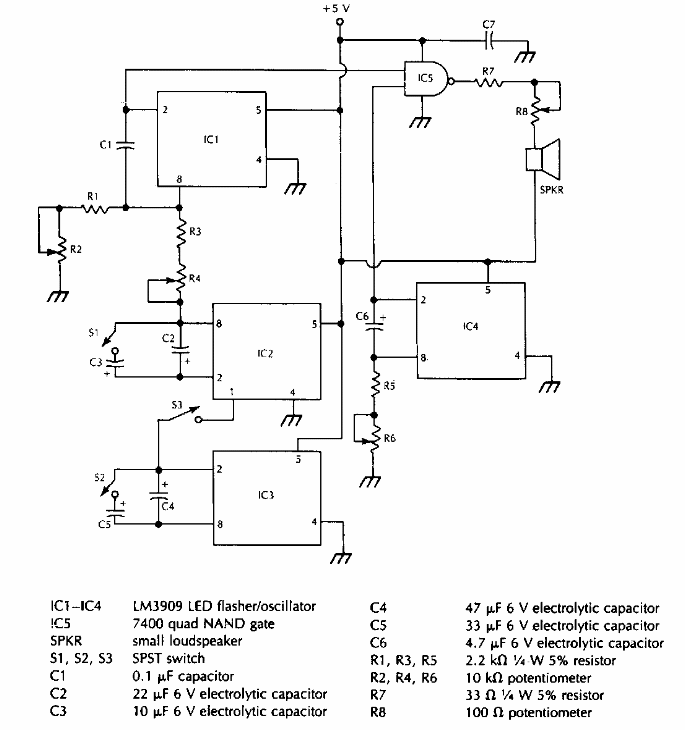

Using LM3909 integrated circuits, this circuit was found in an American documentation from the 90's. The frequencies can be changed by changing the capacitors.




| Clique na imagem para ampliar |
