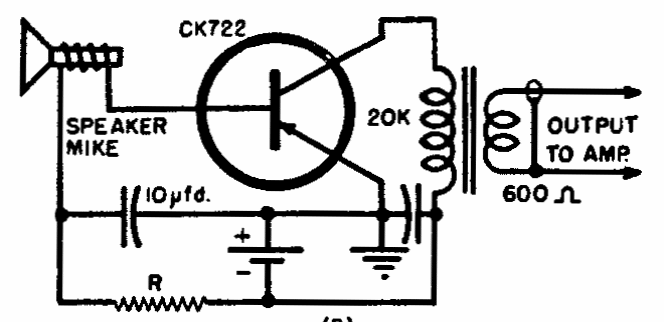

This configuration was found in Raytheon's circuit manual from the 1960s. The circuit has an output of 600 ohms using a CK722 transistor. R must be obtained experimentally depending on the 1.5 to 6 V supply.
| Clique na imagem para ampliar |
Low Impedance Preamp 2 (CB21895E)
