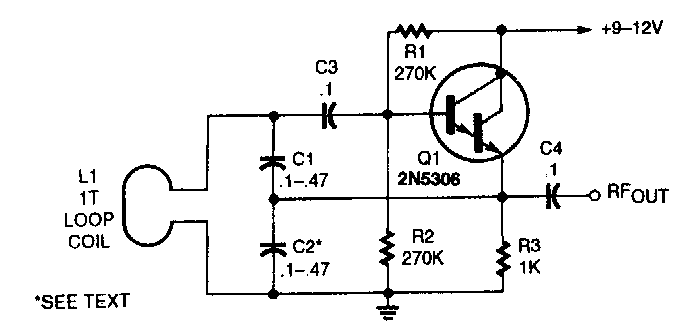

Darlington Oscillator (CB21142E)

Indicated by Popular Electronics, in an edition of the 90's, this circuit seems doubtful because of the inductance used, which must be large.

| Clique na imagem para ampliar |
