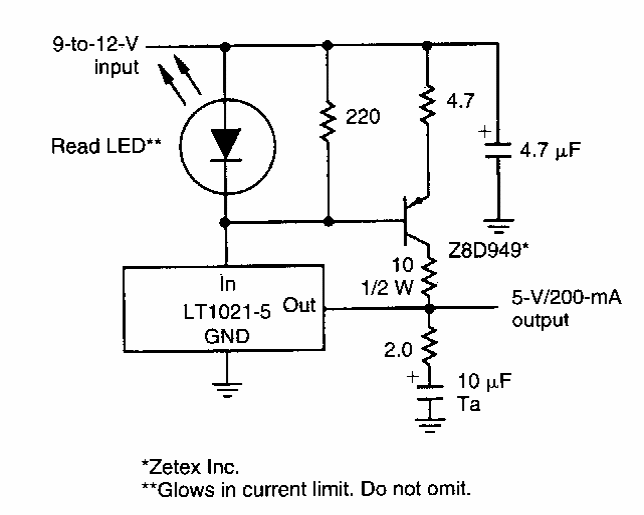

This power supply was obtained from an Electronic Design from the 90's. The circuit applies to other 3-terminal regulators. The maximum output current is 200 mA.
| Clique na imagem para ampliar |
Low noise 5V source (CB21170E)
