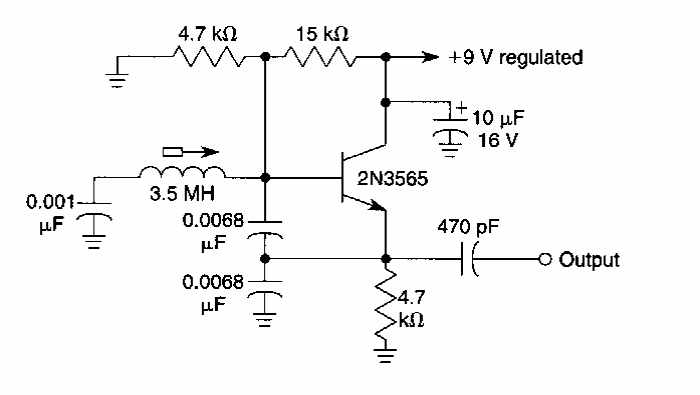

Found in American documentation from the 1990s, this circuit can generate signals of up to a few tens of megahertz. The transistor must be suitable for high frequencies.
| Clique na imagem para ampliar |
Clapp Oscillator (CB21147E)
- Details
- Written by: Newton C. Braga
