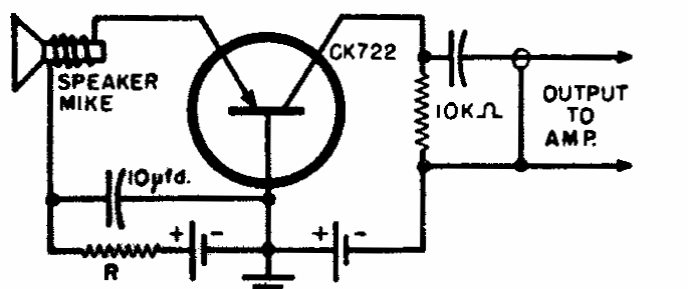

Found in a Raytheon transistor manual from the 1950s, this circuit uses one of the first commercially available transistors, the CK722. The circuit is for using a small speaker as a microphone.
| Clique na imagem para ampliar |
Low impedance preamp 1 (CB21894E)
